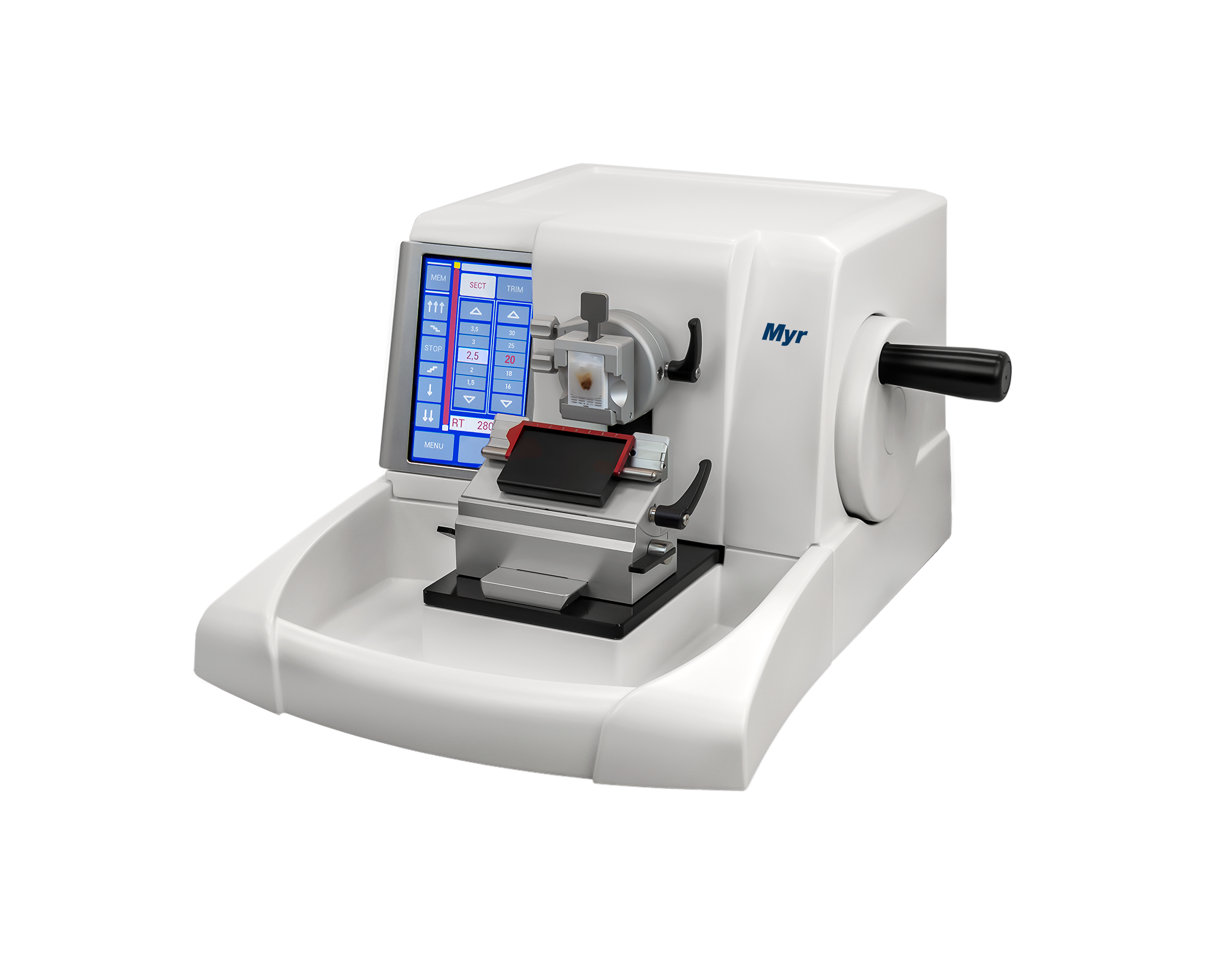

Semi-Automated Rotary Microtome M-240

For cuts of paraffin blocks

State-of-the-art technology provides the operational comfort and stability required for high-quality cutting in routine, research and industrial applications.

Download documentation

Features

Memory function (MEM) for increased productivity, allowing you to recall previous cut settings when working with uniform paraffin blocks

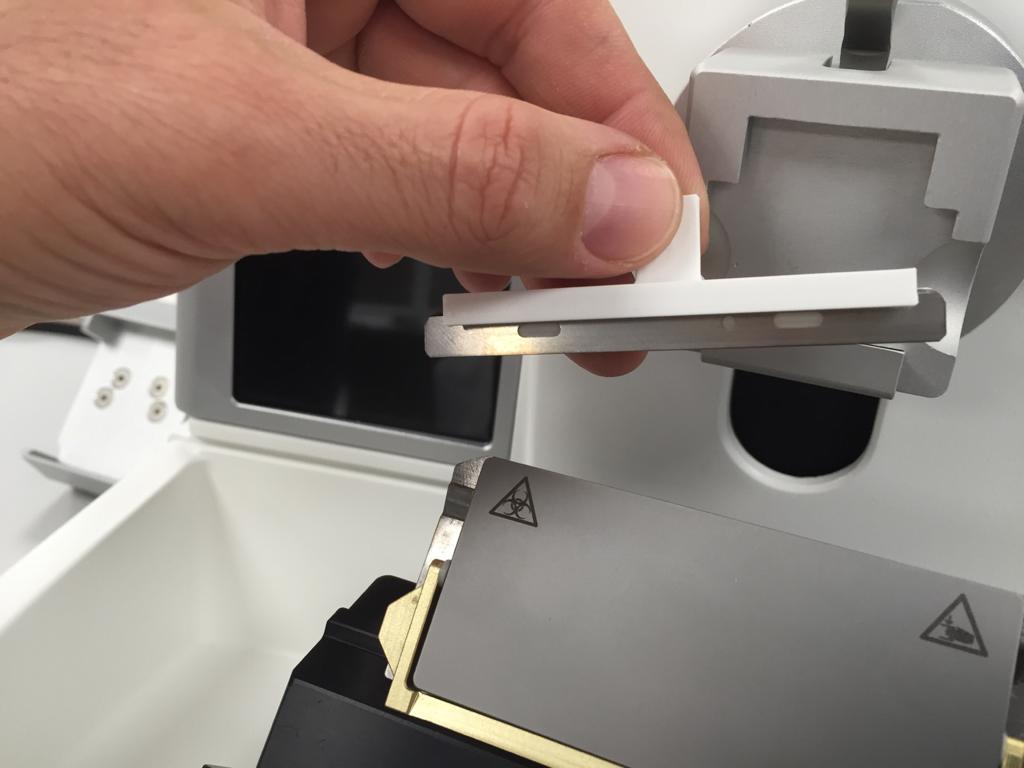

Large waste tray with special antistatic coating to prevent paraffin adhesion and minimize cleaning time. Ergonomic design includes an armrest

Smooth, ergonomic handwheel, perfectly balanced thanks to an innovative counterweight system, which can be locked in any angular position

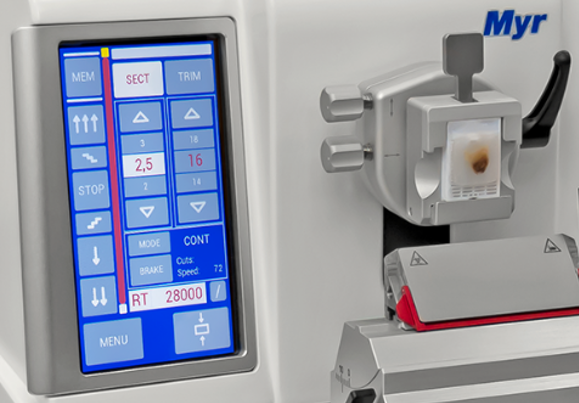

Full-colour TFT 7” display with PCAD (projected capacitive) touchscreen. The size and tilt of the display allow an easy and effortless selection of the parameters and increased user safety. All required parameters and functions are available on the main screen.

Indication of 0-position in x and y direction by palpable “click” for the precise alignment of the specimen. The 360º rotational capability of the specimen clamp and 8º mobility range along the x and y-axis of the orienting specimen head enables higher precision and alignment.

Motorized coarse feed modes of operation, continuous and by step, can be accessible through the touchscreen. In continuous mode, speed is selectable between slow and fast to ensure a controlled specimen approach. For rapid movement to the home position, integrated superfast backwards speed.

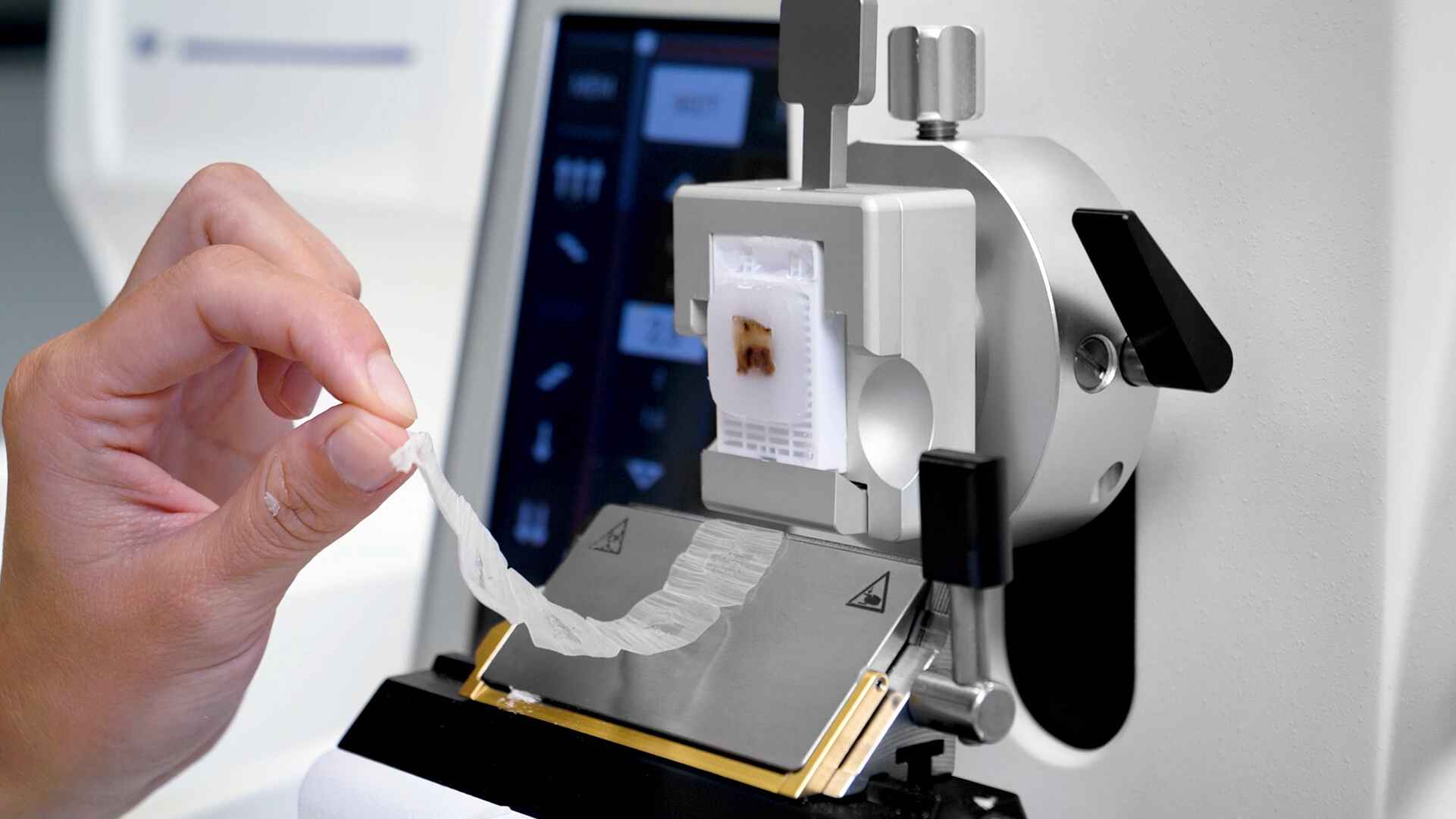

The handwheel is perfectly balanced thanks to an innovative counterweight system and can be locked in any angular position. Cutting can be done by turning the handwheel clockwise or counterclockwise, and its motion smoothness minimizes user’s fatigue.
